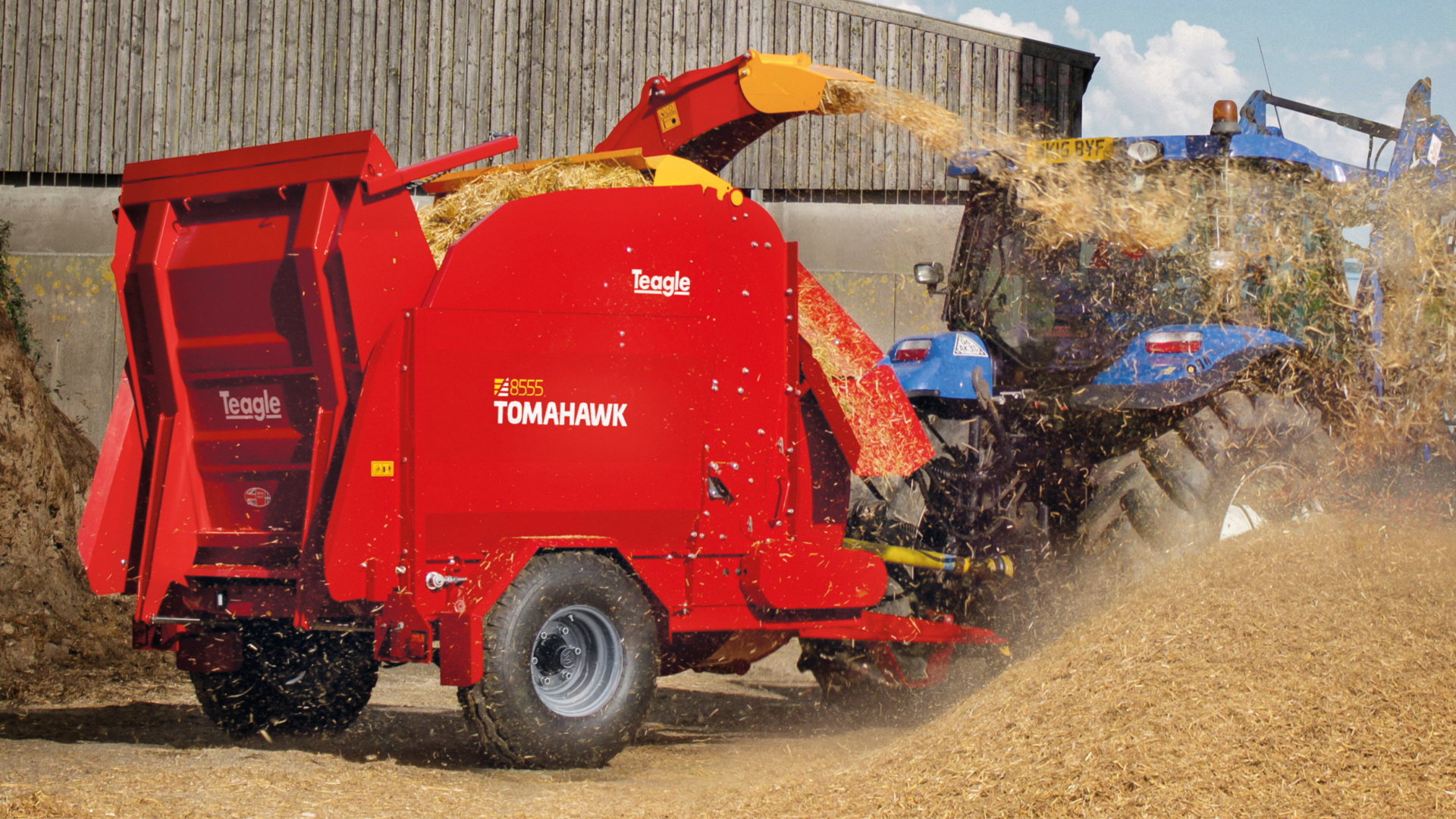

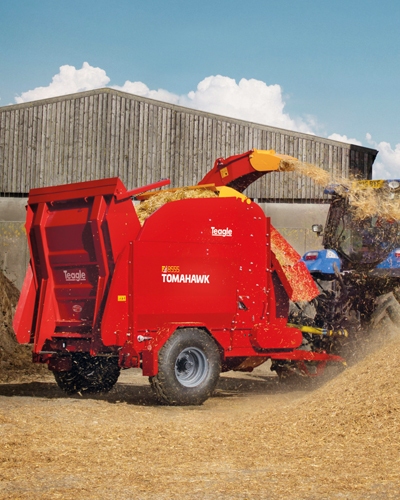

The 8555 Bale Processor efficiently processes round or rectangular bales of straw to a consistently short length, as needed in poultry or cubicle bedding, or TMR rations. The system also processes clamp and baled silage.
With a removable screen and optional bypass frame, it offers three modes: Short Chop, Shred, and Distribute.
3 Modes: Short Chop, Shred, Distribute
Benefits: Save fuel and ensure a consistently short chop length for better bedding or feed results.
The 8500 can process bales of cornstalks, straw, hay and silage, as well as clamp silage.
Screen size can be changed through the side of the machine in seconds, and an optional bypass frame is available when no cut control is required..
The ‘Dual Chop’ system incorporates a set of retractable blades that can be repositioned at the touch of a button, changing straw output from short chop (around 50mm) to no chop.
The 2 speed fan has 8 replaceable paddles for straightforward servicing. The wide body format incorporates a large diameter fan to ensure a consistent delivery and maximum blow distance.
Service life is increased by up to 3 times with Hardox used in the the wearing parts in the chute and fan housing.
The Dual Chop crossbeater has 168 hardox rippers, creating over 64,000 scissor chops/minunte, that interact with fixed blades when in the chopping position.
Chain drive to crossbeater ensures reliable power transmission.
The robust WiFi control desk means that the 8500 only requires a 12v electrical connection with the control desk remaining in the cab.
Auto chain order (crossbeater drive) is recommended for high-use operations.
The PTO is fitted with overrun and Slip Clutch driveline protection.
The PTO is fitted with overrun and Slip Clutch driveline protection.
Robust 12mm bed chain and 40mm x 60mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,
Robust 12mm bed chain and 40mm x 60mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,
All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.
All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.
Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.
Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.
For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.
For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.
Load bales without having to return to the tractor cab, useful when removing netting or wrap.
Load bales without having to return to the tractor cab, useful when removing netting or wrap.
Ring or K80 hitches can be specified.
Ring or K80 hitches can be specified.
All of our trailed implements are available with Homologation certification, manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.
All of our trailed implements are available with Homologation certification, manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.
Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.
Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.
In-line high pressure filter prevents contamination from damaging the valve equipment.
In-line high pressure filter prevents contamination from damaging the valve equipment.
The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees. Hydraulic angle adjustment included,
The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees. Hydraulic angle adjustment included,
To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.
To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.
Increase capacity and ease of loading, attaches easily to a standard tailgate.
Increase capacity and ease of loading, attaches easily to a standard tailgate.
For continuous operation when turning corners a Wide Angle PTO shaft is recommended.
For continuous operation when turning corners a wide angle PTO shaft is recommended.
Built in Britain; making an impression worldwide!
A significant investment in a double powder coat paint line in 2023 has enhanced product quality and durability. Fasteners are all either Galvanised or Stainless Steel.
Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.
Auto chain order (crossbeater drive) is recommended for high-use operations.
The PTO is fitted with overrun and Slip Clutch driveline protection.
The PTO is fitted with overrun and Slip Clutch driveline protection.
Robust 12mm bed chain and 40mm x 60mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,
Robust 12mm bed chain and 40mm x 60mm slats are fitted as standard for durability. Servicing is straigthforward with slats attached to the chains with 'U' Bolts,
All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.
All Tomahawk models feature a high specification gearbox, with high/low fan speed gear preselection.
Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.
Essential for highway use, the front and rear markers ensure that you operate safely when travelling on the road.
For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.
For flexibility of delivery, the chute rotates 280 degrees allowing material to be directed to where it is needed. An adjustable feed slide is fitted for accurate placement of feed materials.
Load bales without having to return to the tractor cab, useful when removing netting or wrap.
Load bales without having to return to the tractor cab, useful when removing netting or wrap.
Ring or K80 hitches can be specified.
Ring or K80 hitches can be specified.
All of our trailed implements are available with Homologation certification, manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.
All of our trailed implements are available with Homologation certification, manufactured in accordance with In Homologation certification according Article 35 of Regulation (EU) No. 167/2013.
Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.
Reduce respirable dust by up to 40% with our Hydroshield water spray system. An onboard tank and 5 high pressure spray nozzles.
In-line high pressure filter prevents contamination from damaging the valve equipment.
In-line high pressure filter prevents contamination from damaging the valve equipment.
The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees. Hydraulic angle adjustment included,
The optional ‘Ski Jump Chute’ complete with adjustable comb and extended beak is perfect for bedding pig arcs and mulching fruit trees. Hydraulic angle adjustment included,
To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.
To deliver material behind the Tomahawk 9500 and 1010 the optional 300mm swivel chute extension is required.
Increase capacity and ease of loading, attaches easily to a standard tailgate.
Increase capacity and ease of loading, attaches easily to a standard tailgate.
For continuous operation when turning corners a Wide Angle PTO shaft is recommended.
For continuous operation when turning corners a wide angle PTO shaft is recommended.
Built in Britain; making an impression worldwide!
A significant investment in a double powder coat paint line in 2023 has enhanced product quality and durability. Fasteners are all either Galvanised or Stainless Steel.
Reduces time and effort compared to bedding by hand. Evenly spread a bales in bedding areas to reduce straw usage and provide a comfortable and absorbent bed for cleaner healthier livestock.
Gavin Rodda runs a 330-cow dairy herd at Rosemorran Farm, Cornwall, producing an average of 9500 litres. Milk produced under contract for Cathedral City branded cheese, which demands the constituents and quality of the milk are consistently high.
Gavin says "The straw is chopped short with clean cut ends. By chopping as needed keeps the straw fresh which the cows find more palatable, increasing intake and reducing waste for the dung pile”
Achieving 64,000 chops per minute, this reduces diet feeder mixing time and prevents silage over-processing.
The 8555 delivers a short chop length of 50mm, ideal for feeding and enhancing rumen stimulation, which can increase milk yields.
