Working Width
Working Width 1.15m - 1.45m
Tractor
Power 12 - 30HP
PTO
PTO 540 rpm
Hammer Flails
Hammer Flails 'G' Type
Weight
Weight 200kg - 280kg

Why choose the MINI

Suited for mulching light grass on green areas, parks and sports courts.

Key Benefits:

  • Fixed and reversible 3-point linkage Cat. I
  • Forged and hardened BERTI hammers (or blades)
  • Self-cleaning and adjustable Ø114 rear roller
  • Free wheel in the gearbox (540rpm)
  • Optional skids available

Explore the MINI

Features
Options
MINI features
×
×
×
×
×

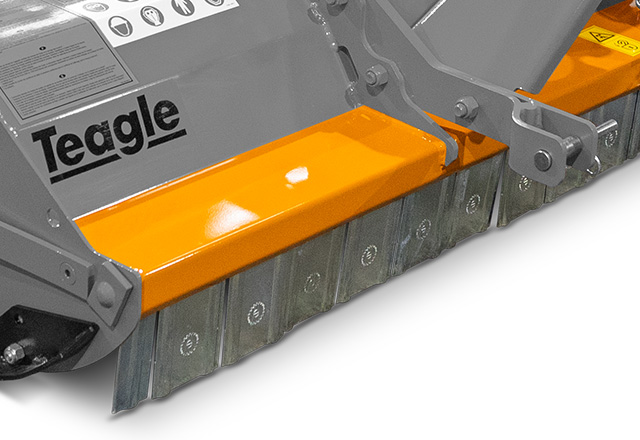

Debris Protection ×
Debris Protection
Debris Protection

Pivoting steel flaps are fitted to the front of the flail to prevent debris being thrown up towards the tractor.

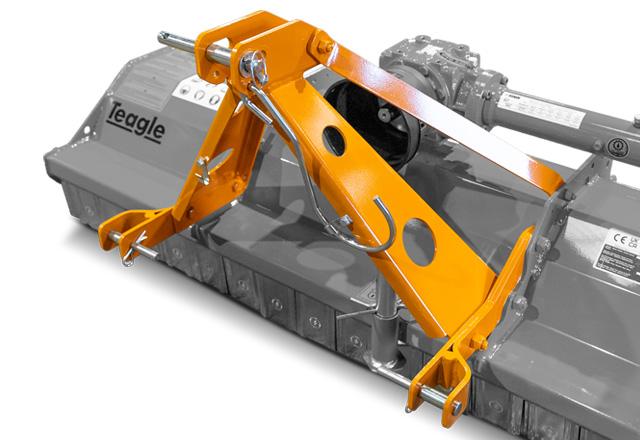

Displaceable 3 point linkage ×
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock runs on a greaseable rolled steel profile.

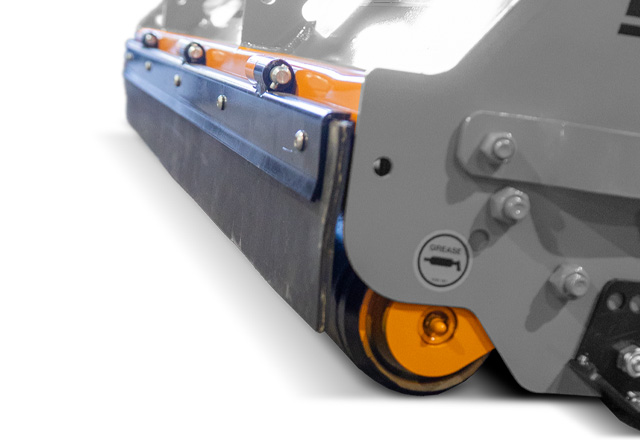

Large Diameter Roller ×
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

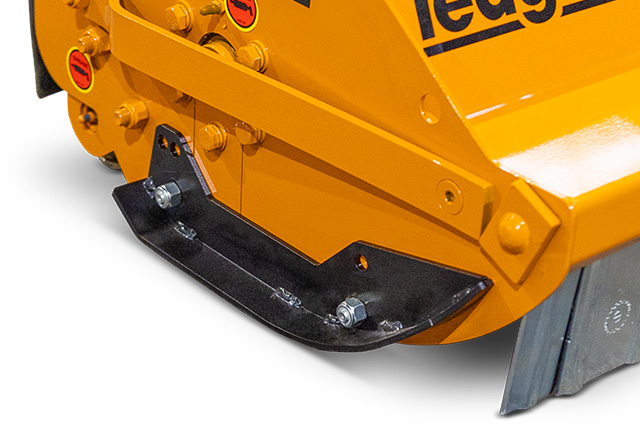

Side Skids ×
Side Skids
Side Skids

Hardox skids for greater durability.

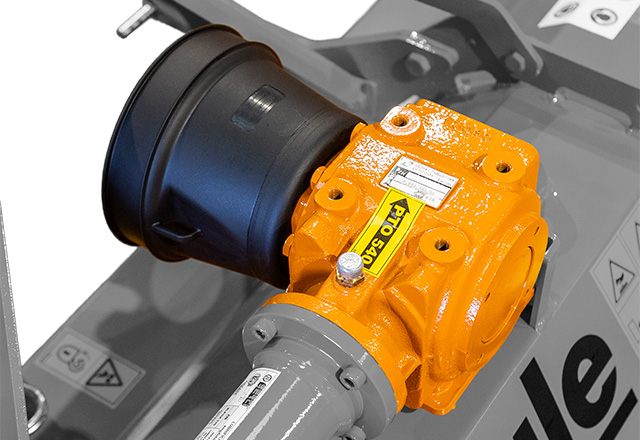

Through Shaft ×
Through Shaft
Through Shaft

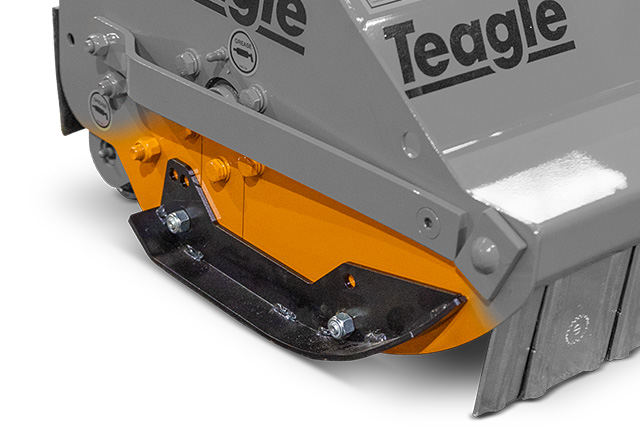

OPTION : Side Skids ×
OPTION : Side Skids
OPTION : Side Skids

Our side skids are made from Hardox for greater durability

‹
›
Features
Options
MINI options
×
OPTION : Side Skids ×
OPTION : Side Skids
OPTION : Side Skids

Our side skids are made from Hardox for greater durability

‹
›

Watch Flail Mulchers in action

Dual Flail Mower

Specifications

More ›


Description
MINI 115MINI 125
MINI 145
Working width
1.15m1.25m1.45m
Power - min/max
12 - 30HP12 - 30HP
12 - 30HP
No. of 'G' hammers
323440
Lateral displacement (mm)
530/620530/720615/835
No. of 'YG' blades*
646880
No. of belts
3323
PTO (rpm)
540540540
Weight - min/max
200/250kg205/260kg
220/280kg
*By special order only
More ›

Flails Brochure

Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
