Working Width
Working Width 1.8m - 3.0m
Tractor
Power 70 - 120HP
PTO
PTO 540/1000 rpm
Hammer Flails
Hammer Flails 'T2' Type
Weight
Weight 1,000 - 1,525kg

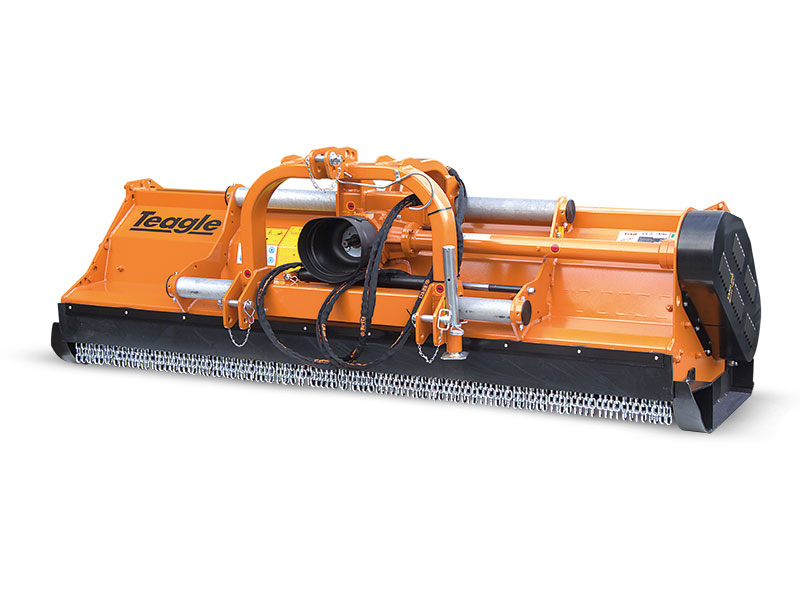

What does the LAND/S do?

Suited for grass, maize stalks, corn stalks, sunflowers, vegetables, sugar cane, potatoes, pasture topping and set aside applications.

Key Benefits:

  • 3-point linkage, Cat. II
  • Hydraulic side shift with hoses and quick coupling
  • Free wheel in the gearbox (rpm see width)
  • Full automatic belts adjuster
  • Self-cleaning and adjustable Ø194 rear roller with scraper

Explore the LAND

Features
LAND/S features
×
×
×
×
×
×
×

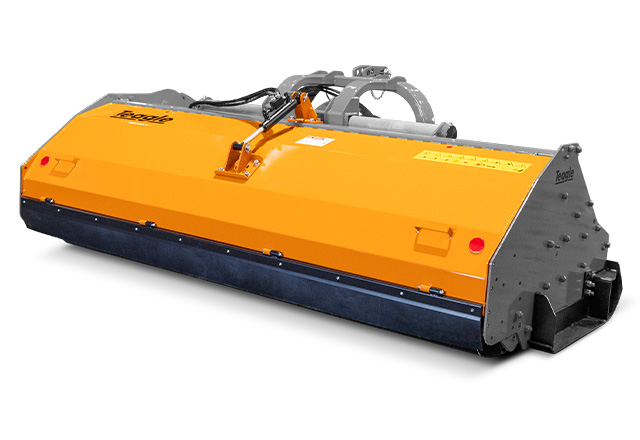

Adjustable Hood ×
Adjustable Hood
Adjustable Hood

For improved mulching performance, the adjustable hoods contain or release cut material as required.

Belt tensioning ×
Belt tensioning
Belt tensioning

The automatic belt tensioning system minimises maintenance and ensures that the driveline protection is always correctly adjusted.

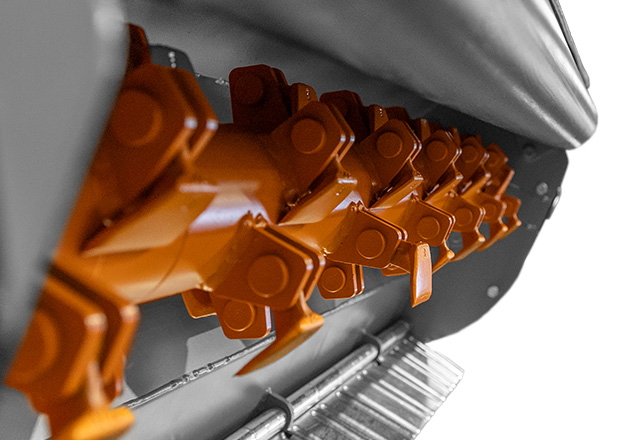

Counter Blades ×
Counter Blades
Counter Blades

For improved mulching performance the PARK/P, TBM, TBM/S, LAND/S and LAND/P all are fitted with a set of counter blades.

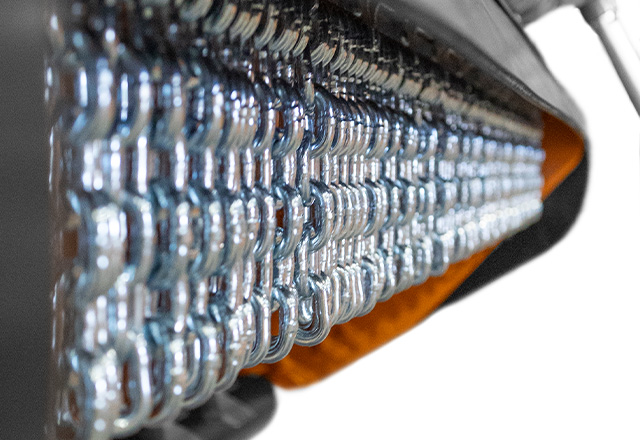

Debris Protection ×
Debris Protection
Debris Protection

Pivoting steel flaps or chains are fitted to the front of the machine to prevent debris being thrown up at the tractor.

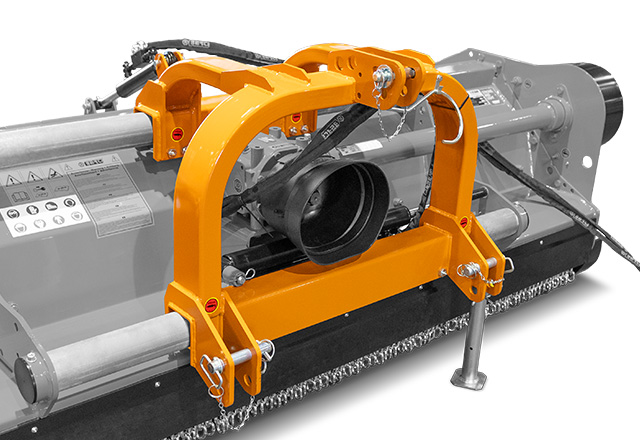

Displaceable 3 point linkage ×
Displaceable 3 point linkage
Displaceable 3 point linkage

The robust rear mount headstock runs on a greaseable rolled steel profile. Headstock can be adjusted with hydraulic sideshift.

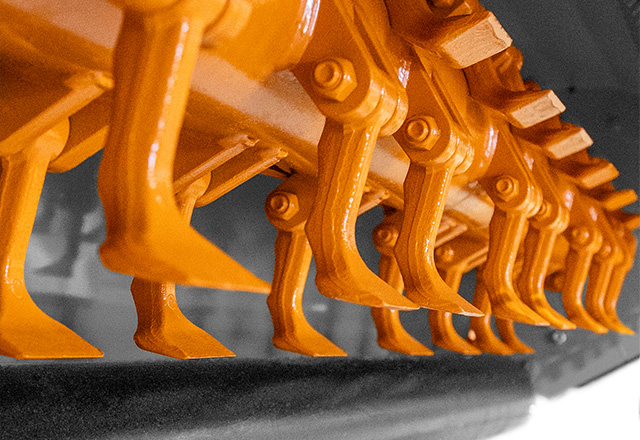

High Performance Rotor ×
High Performance Rotor
High Performance Rotor

The large diameter seamless tube is dynamically balanced and delivers a market leading tip speed, as well as strength in operation. Stout lugs hold the flails firmly in place.

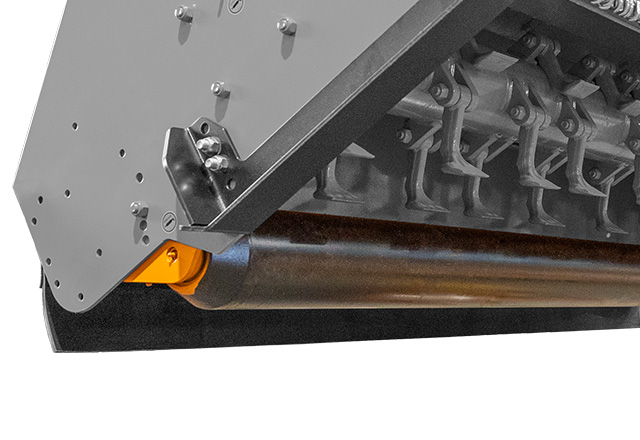

Large Diameter Roller ×
Large Diameter Roller
Large Diameter Roller

The large diameter roller runs on greasable bearings that are protected from debris within a deep labyrinth arrangement.

Watch our Flail Mulchers in action

Dual Flail Mower

Specifications

More


Description
LAND/S 180LAND/S 200
LAND/S 220
LAND/S 250LAND/S 280LAND/S 300
Working width
1.8m2.0m2.2m2.5m2.8m3.0m
Power - min/max
70 - 120HP70 - 120HP
70 - 120HP
80 - 150HP
80 - 150HP
80 - 150HP
No. of 'T2' hammers
2224283032
36
No. of 'YT2' blades*444856606872
No. of 'YT2 centre' blades*66728490102108
Lat. displacement (mm) LH1042/7581042/9591215/10851325/11751615/11851615/1385
Lat. displacement (mm) RH520/1280520/1480
694/1606803/16961094/17061094/1906
No. of belts
44444
4
PTO (rpm)
540540
540
1000
1000
1000
Overall height1.05m1.05m
1.07m
1.10m1.10m
1.10m
Overall length1.98m2.18m2.48m2.68m2.98m3.18m
Overall width1.55m1.55m
1.55m
1.55m
1.55m
1.55m
Weight - min/max
1,000/1,165kg1,050/1,205kg
1,170/1,310kg
1,240/1,380kg
1,360/1,495kg
1,400/1,525kg
* By special order only
