Working Width
Working Width 1.2m - 1.6m
Tonnes
Tonnes 20t - 35t
Flow Rate
Flow Rate 190 - 210 l/min
Hammer
Hammers 'XF1' Type
Weight
Weight 1,430 - 1,750kg

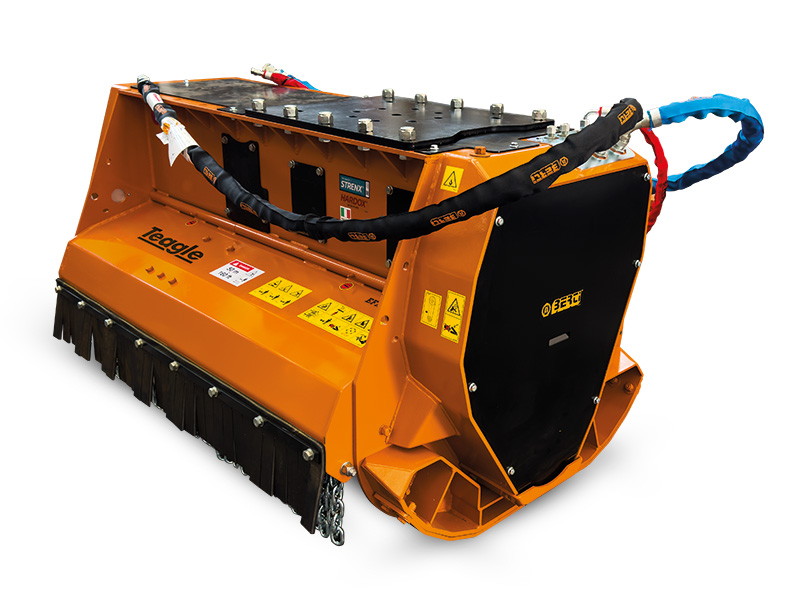

EFX/SB Excavator

Hydraulic forestry mulcher with fixed teeth rotor for excavators with operating weight from 20 to 35 tonnes.

Key Benefits:

  • Double chassis
  • Belts transmission
  • Full automatic belts adjuster
  • Skids with anti-wearing Hardox steel undershoes
  • Forestry fixed tooth rotor
  • Fixed BERTI hammers with tungsten carbide tips
  • Counter blades, bolted
  • Manual Hood (Hydraulic hood optional*)


* By special order only

Explore the EFX

Features
Options
EFX/SB features
×
×
×
×
×
×
Front chain/flap protection ×
 Front chain/flap protection
Front chain/flap protection

Chains and rubber flap protection used to contain material but allowing entry to be cut.

Belt transmission ×
Belt transmission
Belt transmission

Some models use belt transmission for extra drive line protection. Others use direct power to rotor transfer.

Connection ×
Connection
Connection

3 Hydraulic pipe connection used for flow / return and free flow case drain direct to tank to protect and improve motor life.

Floating Hitch ×
Floating Hitch
Floating Hitch

Some models use a floating hitch design for allowing uneven slewing at work.

Manual Hood ×
Manual Hood
Manual Hood

Manual hood

Side Skids ×
Side Skids
Side Skids

Hardox steel skids and anti-wearing plates used to protect the body chassis.

OPTION : Hydraulic Hood ×
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Features
Options
EFX/SB options
×
OPTION : Hydraulic Hood ×
OPTION : Hydraulic Hood
OPTION : Hydraulic Hood

Hydrauic hood

Watch the Excavator mulcher in action

EFX/SB

Specifications

More
Description
ECF/SB 120ECF/SB 140
ECF/SB 160
Working width
1.2m1.4m1.6m
Tonnes
20t - 35t20t - 35t
20t - 35t
No. of 'XF1' hammers
303642
No. of belts
444
Overall height1.15m1.15m
1.15m
Overall length1.60m1.80m2.0m
Overall width1.28m1.28m1.28m
Flow Rate ( l/min)
190 - 210190 - 210
190 - 210
Pressure (Bar)290 - 300290 - 300
290 - 300
Hitch110kg110kg110kg
Weight - min/max
1,430/1,630kg1,550/1,750kg
1,550/1,750kg
More

Extensive range

With over 250 flail models for horticulture, agriculture, forestry, and excavator-mounted applications, Teagle offers the widest range of reliable, high-performance flail mowers and mulchers. Built to withstand tough conditions and deliver exceptional performance.
